Overview

OY Intelligent Technology provides one-stop solutions for helmet cleaning machines. We independently complete sheet metal design & fabrication,

system development and product R&D, and hold multiple patents. Centering on customer value, our in-house R&D and design deliver highly stable,

durable equipment with low maintenance requirements.

We also operate pilot projects on the frontline market to keep track of real user demands and industry trends.

Existing Industry Pain Points

The helmet cleaning machine market has expanded rapidly with numerous brands emerging. Currently, the whole industry faces prominent challenges in product quality, durability and user experience:

1. Poor durability of standard parts
Most machines adopt low-grade accessories for household use, which need replacement after just a few months of operation.

2. Unreasonable structural & circuit design
To speed up production, many manufacturers simplify internal layouts. Poor dry-wet separation and messy wiring lead to frequent unexpected faults and difficult repairs.

3. Mutual interference between dual cabins
Most dual-cabin models share one single operating system, causing functional conflicts between the two cleaning compartments.

4. Drawbacks of dedicated cleaning detergent
All mainstream machines on the market rely on special detergent, bringing multiple issues:
High export transportation cost and complicated shipping procedures; local restock is also inconvenient.
The detergent only works for atomization with nearly no disinfection effect.
Limited fragrance options; the scent fades within hours or one day at most.
Substandard detergent easily clogs pipelines, raising maintenance costs and leading to frequent part replacement.

Advantages of OY 4th-Generation Helmet Cleaning Machine

Our new model fully solves the above problems:
1. Equipped with industrial-grade components, with a service life of over 2 years and a total working lifespan exceeding 10,000 hours.

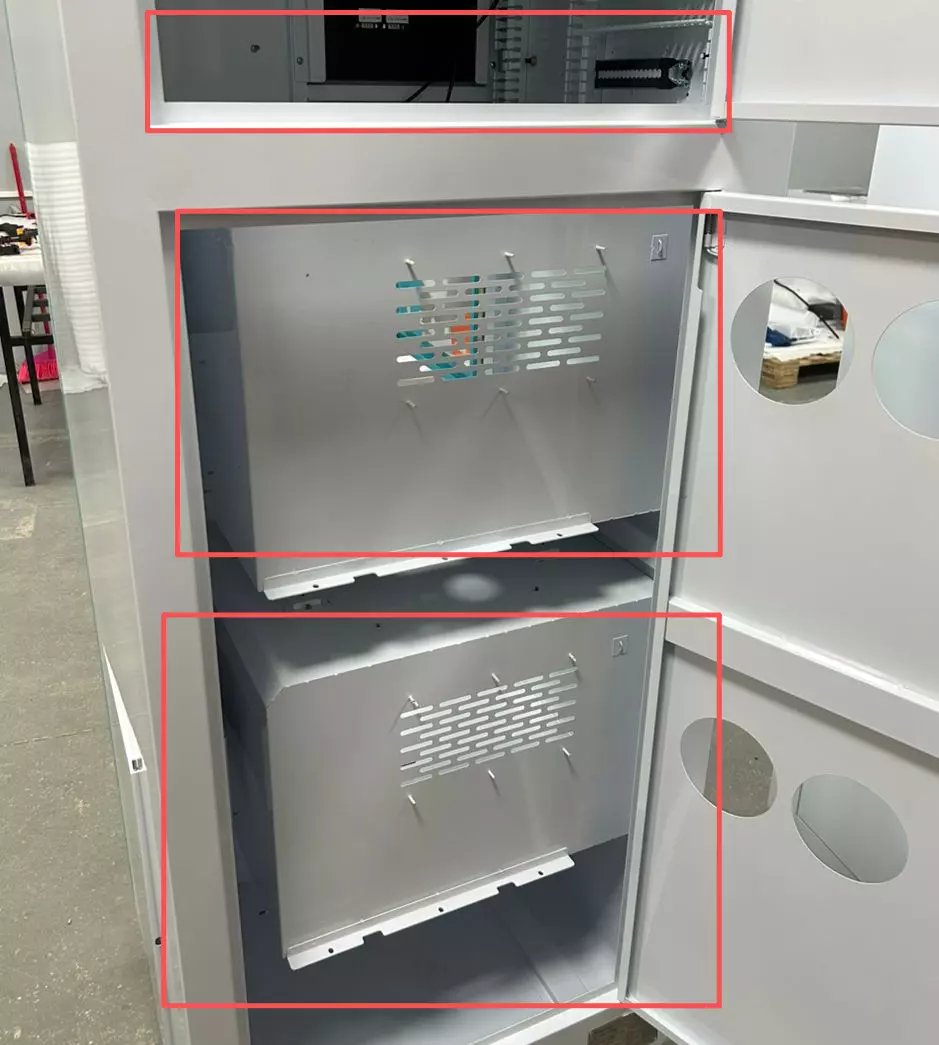

2. Adopts modular design with independent components. Optimized dry-wet separation structure enables easy disassembly, part replacement and daily maintenance.

3. No dedicated detergent required. It uses high-temperature steam and regular water for thorough cleaning, with no water pipe connection needed.

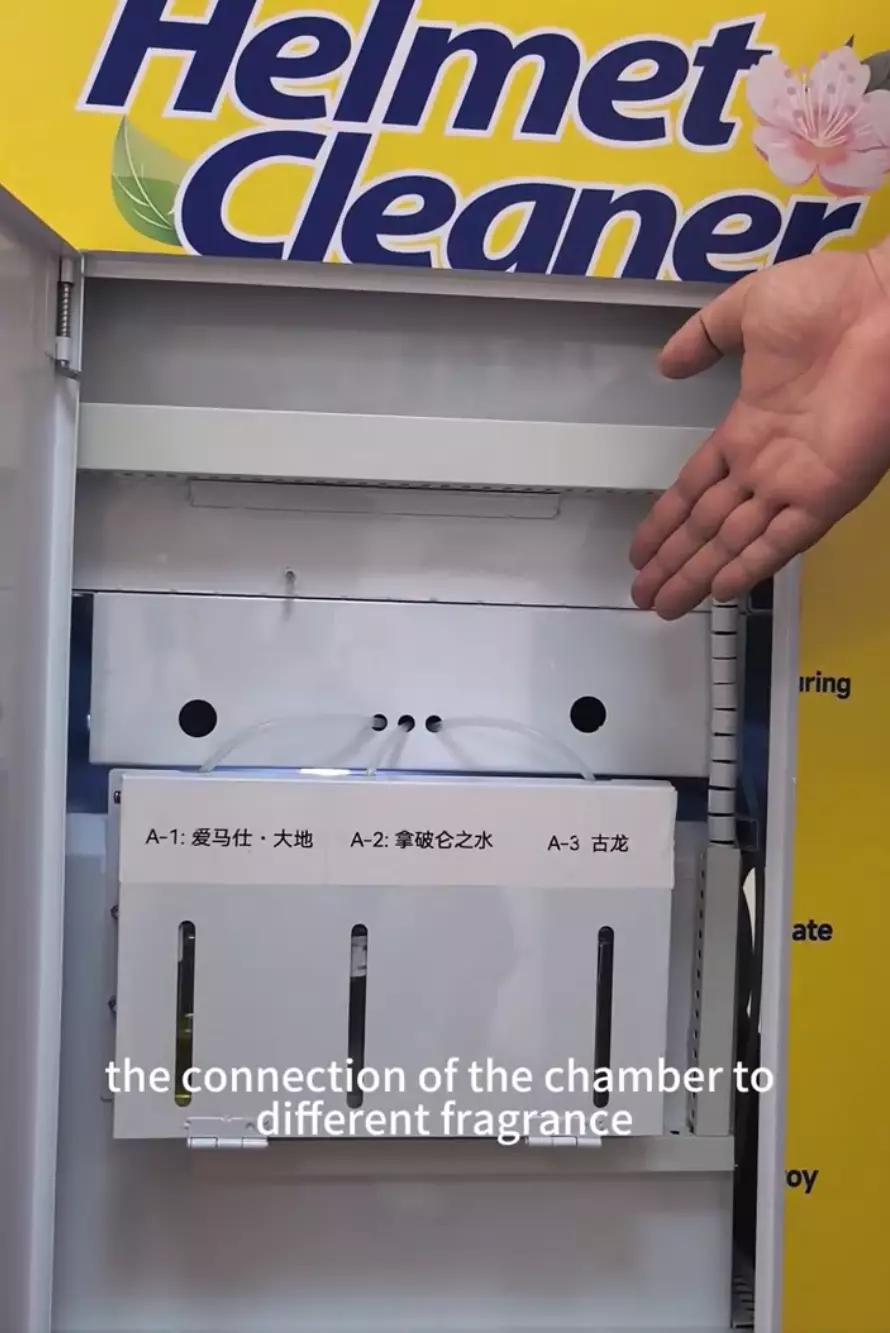

4. Supports up to 6 optional fragrances, stored in independent containers. Perfume is easy to purchase locally, and the scent can last for 5 days after cleaning.

5. Ultra-low consumable cost: only water and perfume are needed. One 200ml perfume bottle can serve 2,500 helmet cleaning cycles.

6. Dual cabins are equipped with two fully independent operating systems. If one compartment malfunctions, the other can keep working normally.

7. Full in-house R&D with no outsourcing at all.

Product Pricing

4th-Generation Helmet Cleaning Machine (21.5-inch Touch Screen)
6 fragrance options
Dual-bin: RMB 15,500
Single-bin: RMB 13,500

4 fragrance options
Dual-bin: RMB 15,000
Single-bin: RMB 13,000

Operating & Consumable Cost

Consumables: Water + Perfume
· 2L water (USD 3): Supports 700 cleaning cycles
· 200ml perfume (USD 7): Supports 2,500 cleaning cycles (6 different fragrances available)
· Power consumption: 0.14 kWh per cleaning cycle
Total cost per cleaning: USD 0.007

Compared with traditional machines using special detergent (USD 0.07 per cycle), our cost is 10 times lower.

Product Specifications

System: Android 11, Rockchip RK3568, 2GB RAM + 16GB Storage
Screen: 21.5-inch LCD all-in-one touch screen

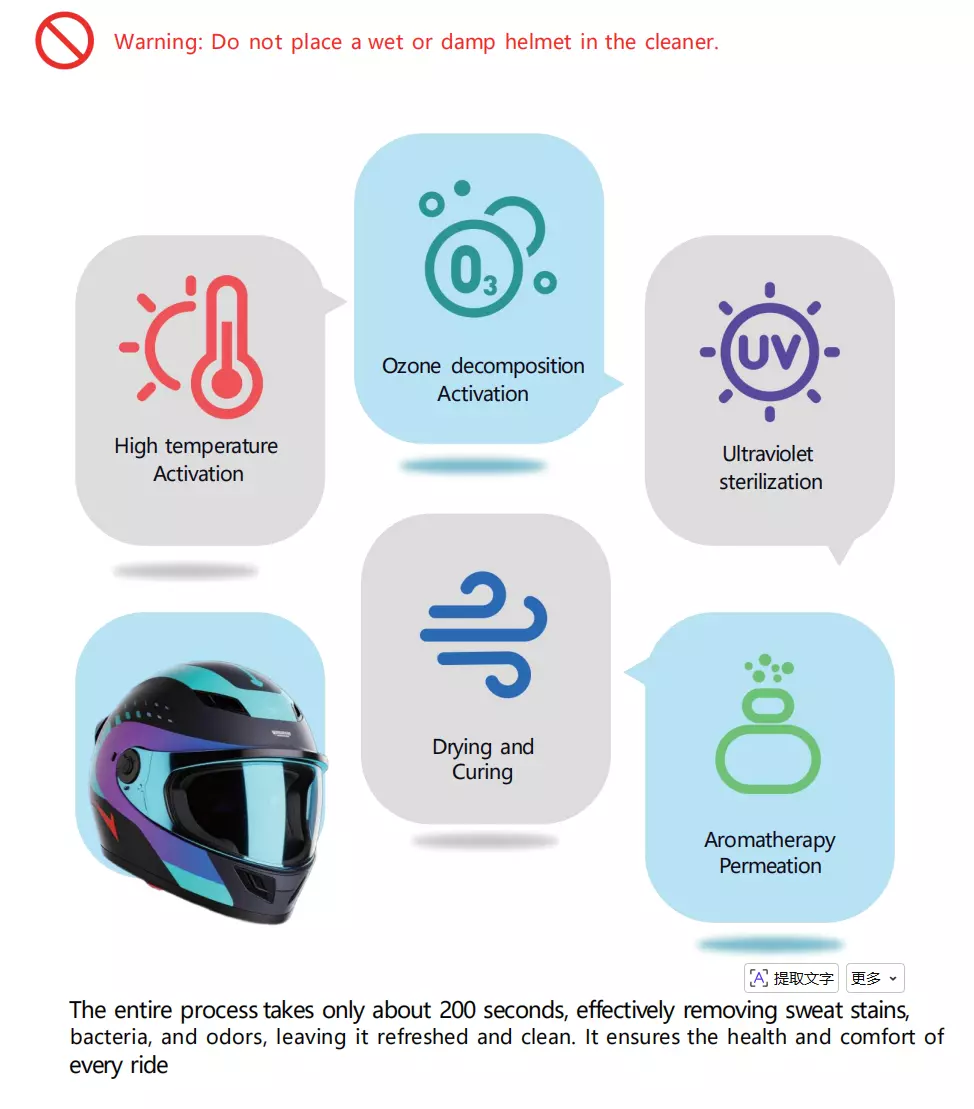

Disinfection: UVC ultraviolet + ozone sterilization
Cleaning method: High-temperature steam cleaning
Language: Default Chinese & English (customizable)
Working voltage: 110V - 220V
Rated power: Dual-bin: 3000W; Single-bin: 1500W
Standby power: 40W
Dimension: 700(W) × 620(L) × 2120(H) mm
Cleaning cabins: 2 units (Dual-bin model)
Net weight: 125kg
Network: 4G / Wi-Fi / RJ45 wired network
Features: 6 fragrance selections, no detergent needed

Wooden Package Specifications
Product: AUTO HELMET CLEANING MACHINE
Type: Dual-bin
Quantity per carton: 1 unit
Gross weight: 154 kgs
Net weight: 125 kgs
Package size: 70 × 62 × 212 cm

Product Brochure

4th Generation Helmet Cleaner Introduction — 2026 V1.pdf
